Quick Details

  • Place of Origin: Hubei, China (Mainland)
  • Brand Name: VCELL
  • Model Number: 12VC7.2
  • Usage: UPS
  • Voltage: 12v
  • Sealed Type: Sealed
  • Maintenance Type: Free
  • Size: 151 X 65 X 4 X 100 (mm)
  • Weight: 2.35kg
  • Nominal Capacity: 7.2AH
  • Terminal type:: FO-01 / FO-02
  • Color:: Grey

Packaging & Delivery

Packaging Details carton
Delivery Time 45days upon receipt of official order

Specifications

1. general purpose series;
2. 3-5 year in standy service;
3. 400 cycles at 50% DOD in cycle service;
4. 1 year warranty.

  12V7.2 SLA SECURITY alarm system&emergency lighting BATTERY

Product Description



Detailed Product Description

12VC7.2 Valve Regulated Lead Acid Battery
1. General purpose series;
2. UL, CE, ISO 9001:2000, ISO 14001:2004, SA8000



12VC7.2 Valve Regulated Lead Acid Battery

1. general purpose series;
2. 3-5 year in standy service;
3. 400 cycles at 50% DOD in cycle service;
4. 1 year warranty period.



NOMINAL VOLTAGE

: 12V

NOMINAL CPACITY(20hr)

: 7.2Ah

DIMENSIONS



TOTAL HEIGHT

: 100mm ( 3.94 inches )

CONTAINER HEIGHT

: 94mm ( 3.70 inches )

LENGTH

: 151mm (5.94 inches)

WIDTH

: 65mm (2.56 inches)

WEIGHT

: APPROX 2.35Kg ( 5.18 lbs)

CONTAINER MATERIAL

: UL94HB ABS



: UL94V-0 ABS

INTERNAL RESISTANCE ( 25°C,77°F)

: ~22mΩ

DISCHARGE CAPACITY UNDER DIFFERENT TEMPERATURES

40°C

: ~102%

25°C

: ~100%

0°C

: ~85%

"VC" series is a general purpose battery with 3-5 years in standby service or more than 400 cycles at 50% depth of discharge in cycle service.


Feature Highlights
* Valve regulated design with close to 100% gas recombination during float charging.
* AGM (Absorbing Glass Mat) technology of which the electrolyte is absorbed.
* Maintenance-free operation - no addition of water to the electrolyte is required.
* Corrosion resistant high current drain grid achived by a lead-tin-calcium alloy.
* Heavy duty grids resulting in high performance and durability.
* Wide range of operating temperatures with temperature compensated charging.
* Excellent charging efficiency.
* Classified as "non-spillable" and therefore exempt from IATA Dangerous Goods Regulations.
* Excellent cyclability properties (at normal depths of discharge), batteries may meet or exceed 1000 discharge/charge cycles.
* Extended service life due to low self-discharge levels.




Main Fields of Application
* Uninterruptable Power Supply (UPS)
* Telecommunication
* Emergency lighting
* Fire alarm and security systems
* Medical appliance
* Solar applications
* Electronic test equipment
* Electronic measuring devices
* Geophysical devices
* Marine equipment

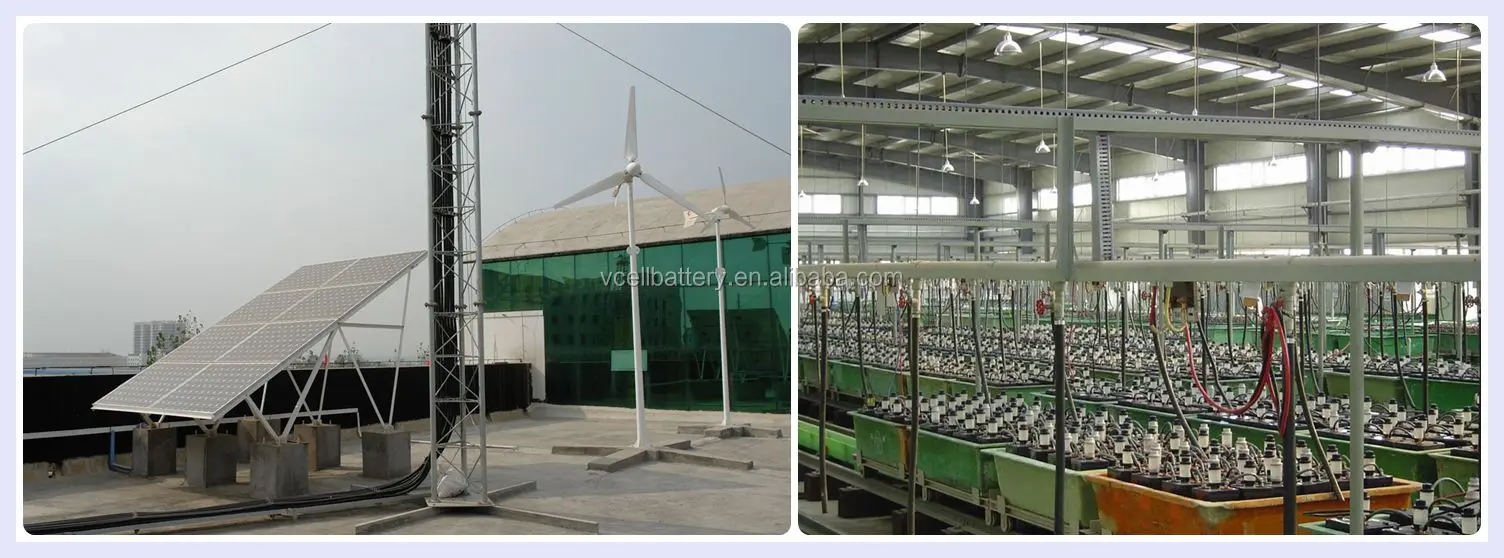

Applications











































Packaging & Shipping



International standard packing or customer' s request.





Company Information



Our certificate

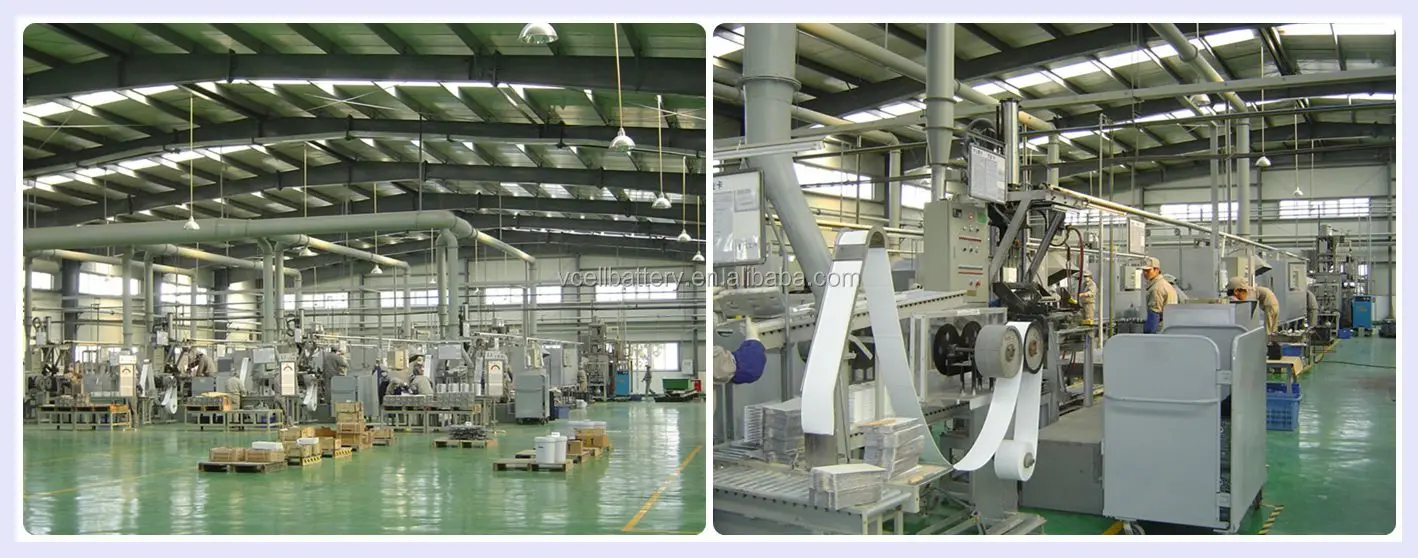

Our factory

















 Wuhan V-cell Energy Technology Co.,LTD. was established in 2005 and specializes in the research, development, manufacture and sale of Vcell brand batteries. The full battery range includes VRLA ( Valved Regulated Lead Acid ) batteries, Car batteries, Primary lithium batteries and Lithium-ion batteries, which are widely used in telecom, emergency lighting, alarm systems, security, medical field, cordless devices and wheelchair industries. Our experience and technical excellence are acclaimed in China and world telecom industry.
