Quick Details

  • Place of Origin: Hubei, China (Mainland)
  • Brand Name: VCELL
  • Model Number: 12VC100
  • Usage: UPS
  • Voltage: 12v
  • Sealed Type: Sealed
  • Maintenance Type: Free
  • Size: 329 X 172 X 217 X 221 (mm)
  • Weight: 33kg
  • Nominal Capacity: 100AH
  • Terminal type: RT-02
  • Color: Grey

Packaging & Delivery

Packaging Details carton
Delivery Time 45days upon receipt of official order

Specifications

Deep Cycle Battery for Solar System (12v,100ah)
1. high performance battery;
2. UL, CE, ISO 9001:2000, ISO 14001:2004, SA8000



Deep Cycle agm sealed lead acid regulated Battery for Solar System (12v,100ah)







Product Description

1. high performance battery;
2. 3-5 year in standy service;
3. 500 cycles at 50% DOD in cycle service;
4. 1 year warranty.

SPECIFICATION
Model  NumberVolts Capacity DimensionsWeight ApproxTerminal Type
12VC100 12v100ah 329*172*217*221mm33kgRT



NOMINAL VOLTAGE

: 12V

NOMINAL CPACITY(20hr)

: 100Ah

DIMENSIONS



TOTAL HEIGHT

: 221mm ( 8.70 inches )

CONTAINER HEIGHT

: 217mm ( 8.54 inches )

LENGTH

: 329mm ( 12.95 inches)

WIDTH

: 172mm ( 6.77 inches)

WEIGHT

: APPROX 32 Kg ( 70.56 lbs)

CONTAINER MATERIAL

: UL94HB ABS



: UL94V-0 ABS

INTERNAL RESISTANCE ( 25°C,77°F)

: ~6.5mΩ

DISCHARGE CAPACITY UNDER DIFFERENT TEMPERATURES

40°C

: ~102%

25°C

: ~100%

0°C

: ~85%



"VC" series is a general purpose battery with 3-5 years in standby service or more than 400 cycles at 50% depth of discharge in cycle service.

12VC9.0129.0(5.94) 151(2.56) 65(3.70) 94(3.94) 100(5.84) 2.65DFO-01 / FO-02
12VC101210.0(5.94) 151(3.86) 98(3.70) 94(3.94) 100(7.15) 3.25DFO-01 / FO-02
12VC121212.0(5.94) 151(3.86) 98(3.70) 94(3.94) 100(8.14) 3.70DFO-01 / FO-02
12VC181218.0(7.13) 181(2.99) 76(6.58) 167(6.58) 167(12.39) 5.63BFP-01(Φ5.5) / RT-01(M5)
12VC261226.0(6.54) 166(6.89) 175(4.92) 125(4.92) 125(17.82) 8.10CFP-01(Φ5.5) / RT-01(M5)
12VC281228.0(6.54) 166(4.92) 125(6.89) 175(6.89) 175(21.00) 9.80CFP-01(Φ5.5) / RT-02(M6)
12VC321232.0(7.80) 198(5.12) 130(6.22) 158(7.01) 178(22.44) 10.20AFP-02(Φ6.5) / RT-02(M6)
12VC371237.0(7.80) 198(5.12) 130(6.22) 158(7.01) 178(25.35) 11.50AFP-02(Φ6.5) / RT-02(M6)
12VC421242.0(7.76) 197(6.50) 165(6.69) 170(6.69) 170(31.24) 14.20BFP-02(Φ6.5) / RT-02(M6)
12VC551255.0(9.02) 229(5.43) 138(8.15) 207(8.86) 225(37.62) 17.10AFP-05(Φ8.5) / RT-02(M6)
12VC701270.0(13.78) 350(6.54) 166(6.85) 174(6.85) 174(46.64) 21.20BFP-02(Φ6.5) / RT-02(M6)
12VC801280.0(10.24) 260(6.65) 169(8.19) 208(8.31) 211(61.60) 28.00AFP-03(Φ7.5) / RT-02(M6)
12VC901290.0(12.01) 305(6.61) 168(8.17) 207.5(9.04) 229.5(64.90) 29.50AFP-04(Φ8) / RT-02(M6)
12VC10012100.0(12.95) 329(6.77) 172(8.43) 217(8.70) 221(70.56) 32.00AFP-06(Φ9) / RT-02(M6)
12VC12012120.0(16.02) 407(6.81) 173(8.27) 210(9.25) 235(81.40) 37.00AFP-06(Φ9) / RT-03(M8)
12VC13512135.0(13.43) 341(6.81) 173(11.06) 281(11.34) 288(96.34) 43.70AFP-06(Φ9) / RT-03(M8)
12VC15012150.0(19.1) 485(6.77) 172(9.57) 243(9.57) 243(105.60) 48.00AFP-06(Φ9) / RT-03(M8)
12VC20012200.0(20.55) 522(9.45) 240(8.58) 218(9.61) 244(143.33) 65.00CFP-06(Φ9) / RT-03(M8)



Feature Highlights
* Valve regulated design with close to 100% gas recombination during float charging.
* AGM (Absorbing Glass Mat) technology of which the electrolyte is absorbed.
* Maintenance-free operation - no addition of water to the electrolyte is required.
* Corrosion resistant high current drain grid achived by a lead-tin-calcium alloy.
* Heavy duty grids resulting in high performance and durability.
* Wide range of operating temperatures with temperature compensated charging.
* Excellent charging efficiency.
* Classified as "non-spillable" and therefore exempt from IATA Dangerous Goods Regulations.
* Excellent cyclability properties (at normal depths of discharge), batteries may meet or exceed 1000 discharge/charge cycles.
* Extended service life due to low self-discharge levels.

Main Fields of Application
* Uninterruptable Power Supply (UPS)
* Telecommunication
* Emergency lighting
* Fire alarm and security systems
* Medical appliance
* Solar applications
* Electronic test equipment
* Electronic measuring devices

* Geophysical devices
* Marine equipment

















Packaging&Shipping







Minimum Order Quantity :1000 Piece/Pieces

Port :Wuhan,China

Supply  Ability: 100000 Piece/Pieces per month

Payment terms:   L/C,D/A,D/P,T/T,Western Union,MoneyGram

Packaging Details: cartons

Delivery detail: 45 days upon receipt of official order







Company Information



Our certificate:

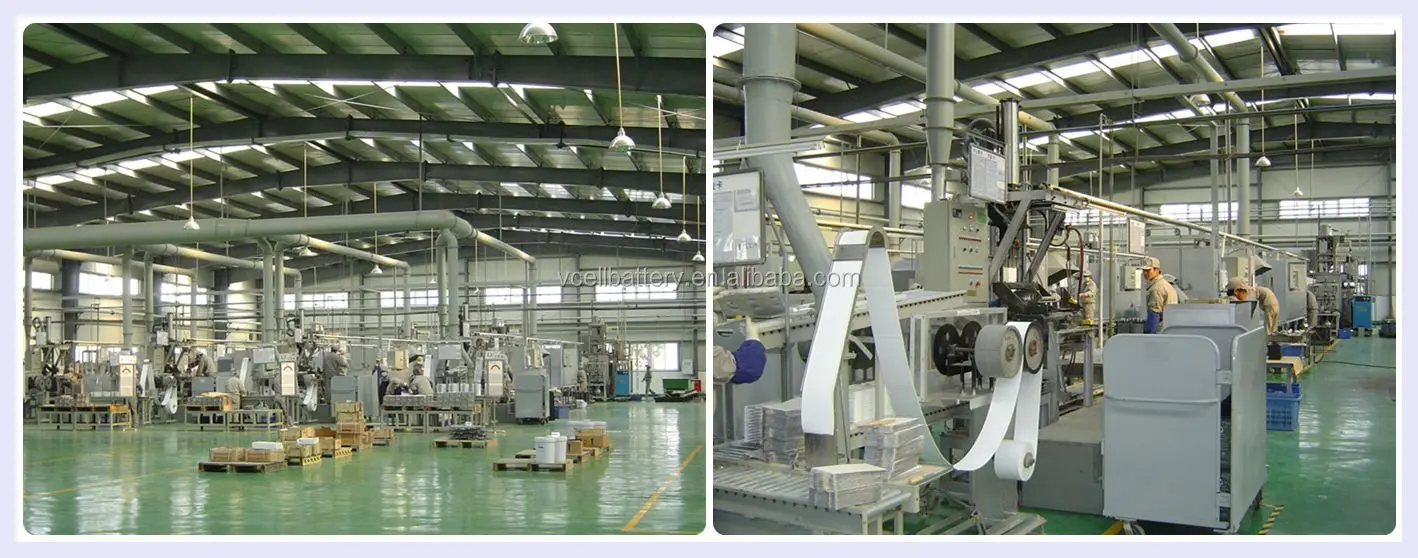

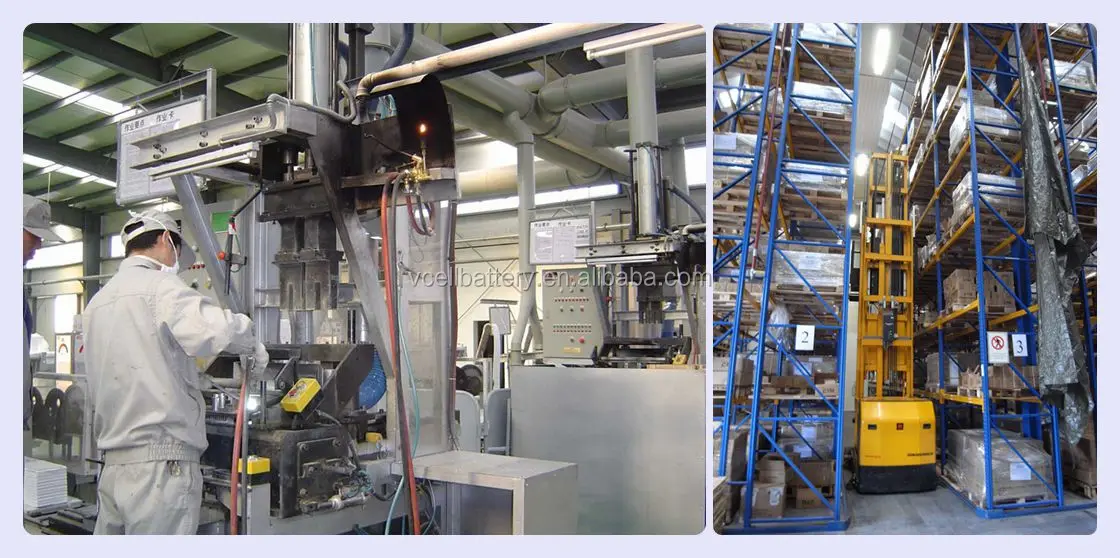

Our Factory:

Wuhan V-cell Energy Technology Co.,LTD. was established in 2005 and specializes in the research, development, manufacture and sale of Vcell brand batteries. The full battery range includes VRLA ( Valved Regulated Lead Acid ) batteries, Car batteries, Primary lithium batteries and Lithium-ion batteries, which are widely used in telecom, emergency lighting, alarm systems, security, medical field, cordless devices and wheelchair industries. Our experience and technical excellence are acclaimed in China and world telecom industry.
